Assembly Dust Removal Blower for Pharmaceutical Manufacturing Plant Factory
Product Introduction

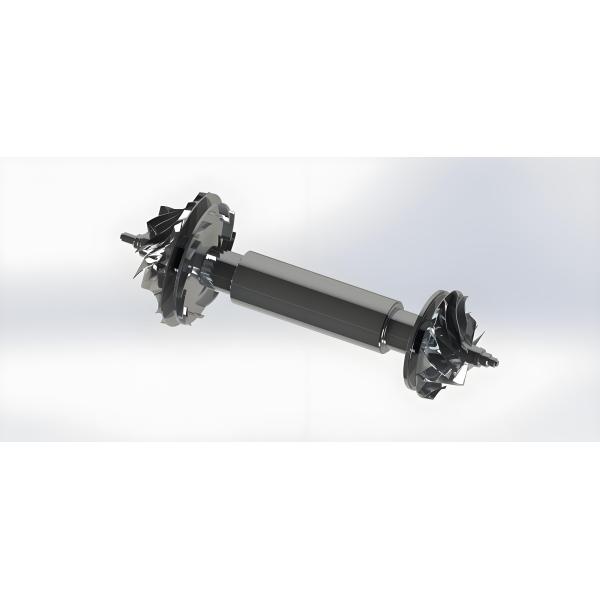

The high-speed PMSM's rotational speed is adjusted by a frequency converter, directly coupled to the spindle to enhance power transfer efficiency and minimize noise. Air bearings allow contactless operation, nearly eliminating mechanical friction (peak efficiency: 96%~98%).
Air-bearing high-speed PMSM, refined with high-efficiency impeller core technology, delivers over 30% energy reduction.
Product Specification
| Details | ST10 | ST20 | ST30 | ST50 | ST75 | ST100 | ST125 | ST150 | ST200 | ST250 | ST300 | ST350 | ST400 | ST500 | ST600 | Cooling Method |
| Type | SINGLE GRADE | | DOUBLE GRADE | |
| Discharge Pressure(KPA) | Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance | Air Cooling |
| 40 | 10 | 18 | | | | | | | | | | | | | |
| 60 | 7.5 | 15 | 20 | 34 | 51 | 69 | 82 | 105 | 140 | 175 | 210 | | 280 | 345 | 420 |
| 70 | | 13 | 18 | 30 | 45 | 60 | 74 | 90 | 120 | 150 | 180 | | 240 | 300 | 360 |
| 80 | | 12 | 17 | 28 | 42 | 54 | 70 | 84 | 109 | 135 | 164 | | 218 | 270 | 328 |
| 90 | | | | | 37 | 50 | 61 | 71 | 92 | | 140 | | 184 | | |
| 100 | | | | | 34 | 45 | 55 | 67 | 87 | | 133 | | | 230 | 260 |
| 150 | | | | | | 32 | 48 | 60 | 69 | 81 | 121 | 125 | | | |
| 200 | | | | | | | | 56 | 65 | 71 | | 85 | | | | Water Cooling |
| 300 | | | | | | | | | | | 105 | 79 | | | |
| 350 | | | | | | 20 | | | 37 | | | 72 | | | | |
| 400 | | | | | | | | | 25 | | | 65 | | | | |
| Discharge Pipe(KW) | 80 | 100 | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Size(MM) | Width | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 | 1300 | 1300 | 1300 | 1300 |
| Length | 1250 | 1250 | 1250 | 1250 | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 | 2200 | 2700 | 2700 | 2700 | 2700 |
| Height | 970 | 970 | 970 | 970 | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 | 1916 | 2115 | 2115 | 2115 | 2115 |
| Weight | 680 | 680 | 680 | 750 | 800 | 960 | 960 | 1050 | 1050 | 1100 | 1320 | 1580 | 1580 | 1800 | 1800 |
Product Show
Manufacturer Introduction
Frezer Technology Co., Ltd. is a modern high-tech enterprise specializing in the design, manufacturing, and sales of air suspension blowers. Founded in 2007 and headquartered in Chongqing—a national hub for technological innovation in western China and a renowned historical and cultural city—the company is one of the few global manufacturers with patented hybrid bearing technology.
Equipped with advanced facilities, strong technical expertise, optimized production processes, and comprehensive testing methods, our products boast unique advantages such as innovative design, robust structure, high energy efficiency, low noise, user-friendly operation, and easy maintenance—features that set them apart from conventional alternatives.
Frezer Technology Co., Ltd. is revolutionizing more than just technology—it has pioneered a new era in the centrifugal compressor industry. Compared to traditional centrifugal blowers, our solutions reduce electricity consumption and energy costs by over 30%. Featuring a 100% oil-free system that eliminates maintenance needs, we significantly lower operational expenses for customers, revolutionizing the centrifugal machinery industry, we deliver cutting-edge energy-saving and eco-friendly blower technology for the future.
Products Advantages
- High-efficiency & energy-saving design with average electricity savings exceeding 30%—Saves >30% electricity compared to traditional Roots blowers.
- Fully Enclosed Casing, Low Noise & Vibration-Free—Noise levels <80 dB, zero vibration, Eliminates the need for foundations or anchor bolts.
- IOT Smart Control & Efficient Air Energy Management—Intuitive touchscreen with 5 operating modes and 5-layer protection for intelligent, user-friendly operation.
- Oil-Free & Maintenance-Free, Semi-Permanent Lifespan—Advanced magnetic bearing technology ensures 20+ years of service with no efficiency degradation over time.
- Compact & Easy Installation—Highly integrated design, Compact, lightweight, and portable for flexible deployment.
Our Service
- Professional Team
- Reliable Technology
- 24 Hours Service
FAQ
Q1: What factors will you need to match the products?
Pressure & Flow Volume
Q2: What is the production time?
Normally one week after receiving your payment.
Q3: What is your minimum order quantity?
MOQ 1 set.
Q4: Are you a manufacturer?
Yes.
Q5: Which delivery methods can you support?
By air, sea, land, rail, express like DHL, UPS, FEDEX.
